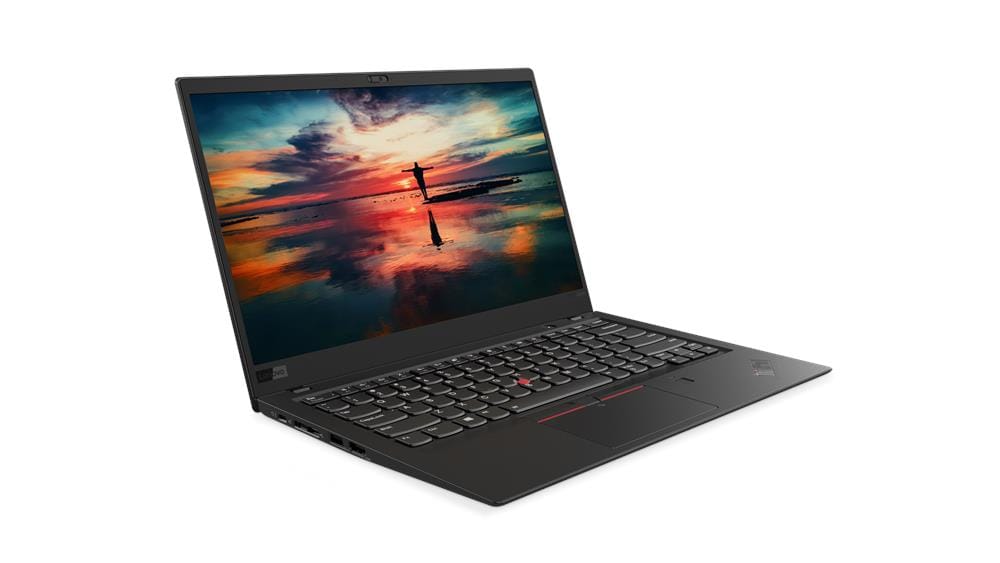

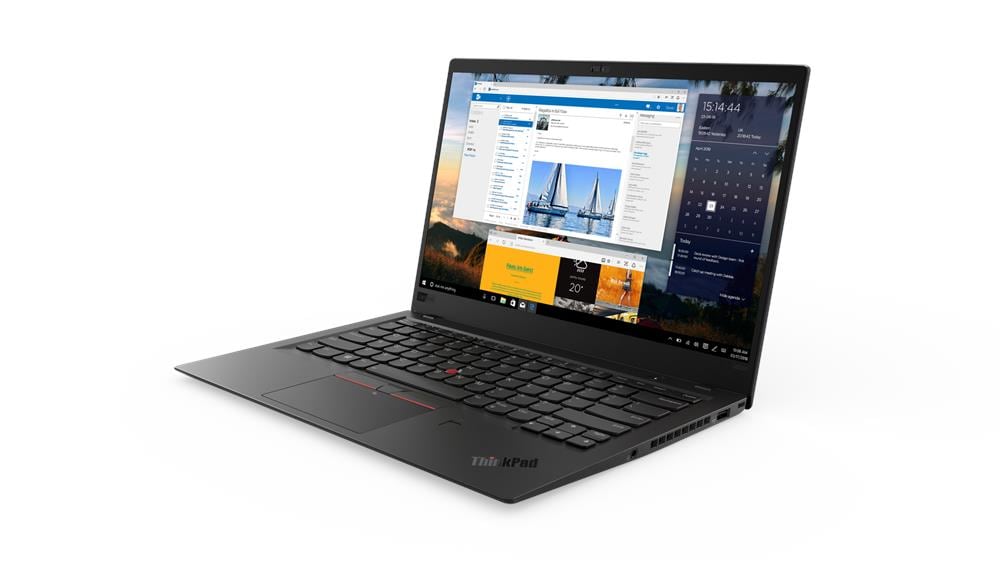

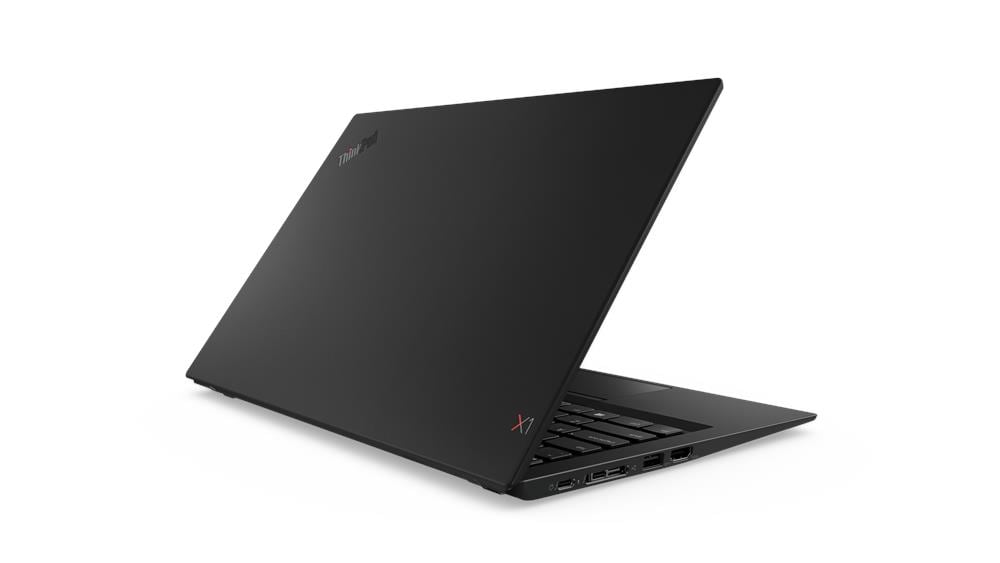

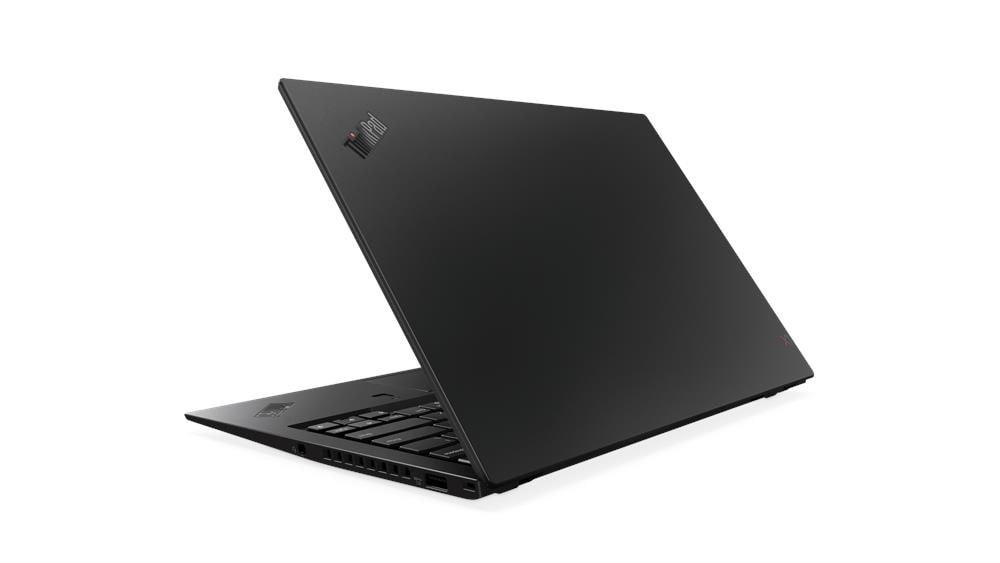

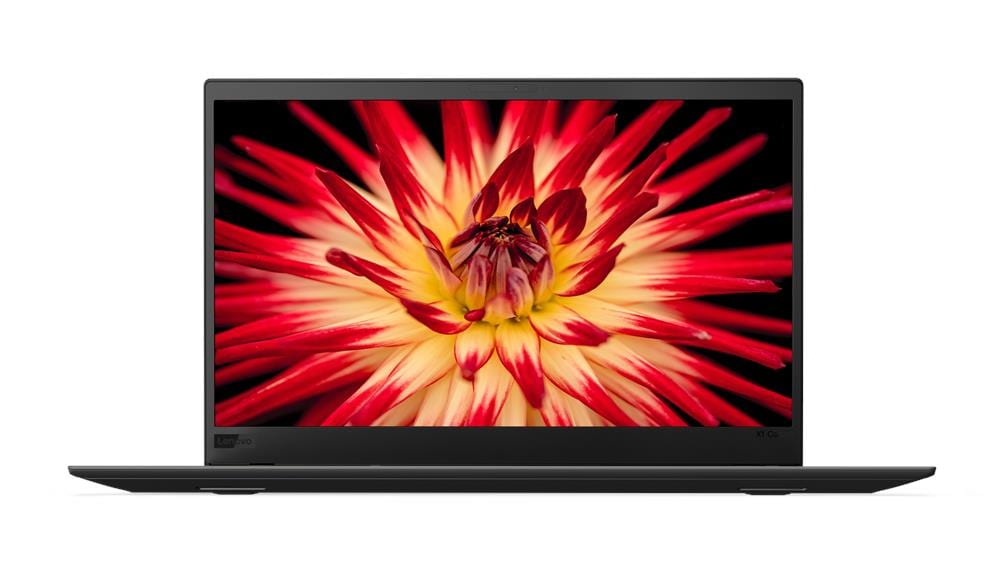

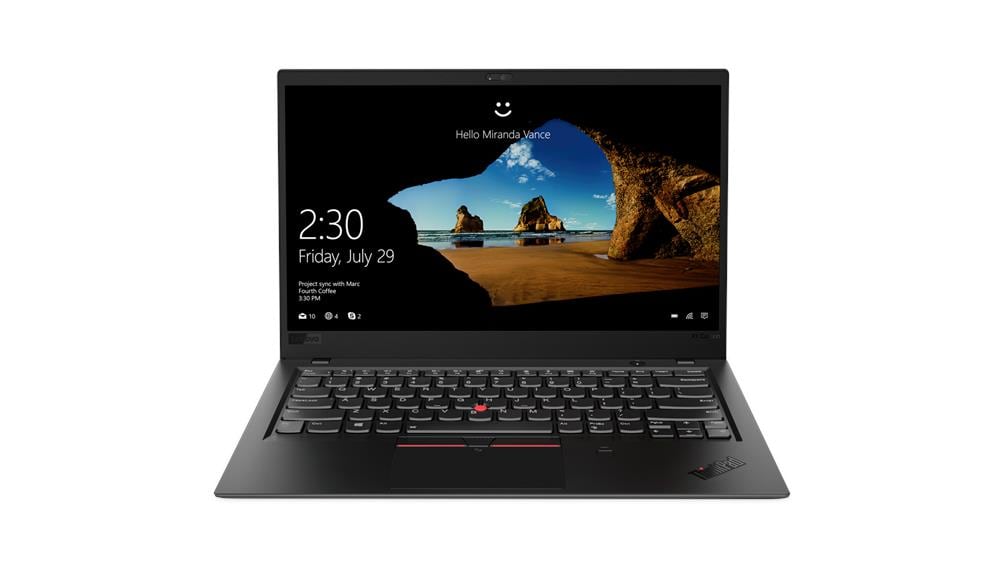

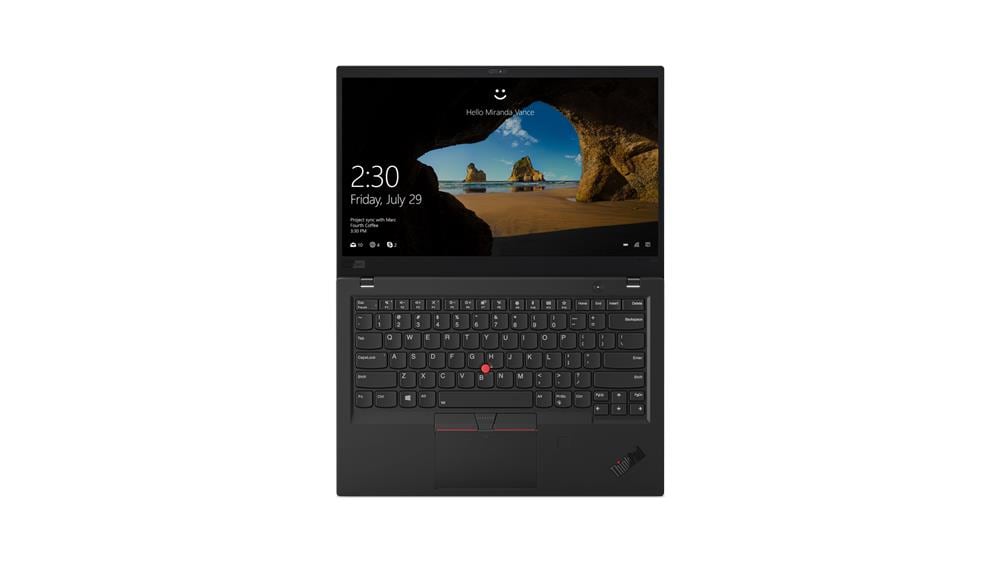

ThinkPad X1 Carbon Gen 6

The 2018 carbon-fiber flagship — 1.13 kg, 8th Gen Intel Core vPro and a 14" FHD panel in the world's most iconic business ultrabook.

Screen

14" FHD (1920×1080) / WQHD HDR

Processor

Intel Core i5-8350U / i7-8650U (8th Gen, 4C/8

Memory

8 / 16 GB LPDDR3-2133

Storage

256 GB – 1 TB NVMe SSD

Battery

57 Wh integrated

Weight

1.13 kg

Overview

Announced	January 2018
Form Factor	14" ultrabook, clamshell
Weight	1.13 kg (2.49 lb) starting
Dimensions	323.5 × 217.1 × 15.95 mm
Case Material	Carbon fiber (top) / magnesium alloy (bottom)
Color	Black

Processor	Intel Core i5-8350U (1.7/3.6 GHz) or i7-8650U (1.9/4.2 GHz), 4C/8T, 8 MB cache
Graphics	Integrated Intel UHD Graphics 620
Chipset	Intel SoC Platform
Memory	8 / 16 GB soldered LPDDR3-2133
Storage	256 GB / 512 GB / 1 TB M.2 2280 PCIe NVMe SSD (Opal2)
System Management	Intel vPro (optional)

Panel	14" FHD (1920×1080) WVA 300 nits anti-glare
Upgrade Option	14" WQHD (2560×1440) IPS HDR 500 nits Dolby Vision
Touchscreen	Optional 10-point multi-touch
Camera	720p HD with ThinkShutter privacy cover

WLAN + Bluetooth	Intel 8265 802.11ac 2×2 + Bluetooth 4.1
WWAN	Optional 4G LTE (Fibocom L850-GL)
Ports	2× USB-C (Thunderbolt 3), 2× USB 3.0, HDMI 1.4, microSD, headphone/mic, optional NFC
Ethernet	Gigabit via optional USB-C adapter
Audio	Dolby Audio Premium, dual array mics

Battery	57 Wh integrated lithium polymer
Power Adapter	45 W / 65 W USB-C
Battery Life	Up to 15 hours (MobileMark 2014, FHD)

Security Chip	Discrete TPM 2.0
Fingerprint Reader	Touch style, match-on-chip
Other Security	ThinkShutter, optional IR camera for Windows Hello, optional NFC
Operating System	Windows 10 Pro 64
Warranty	Refurbished with 12-month warranty
