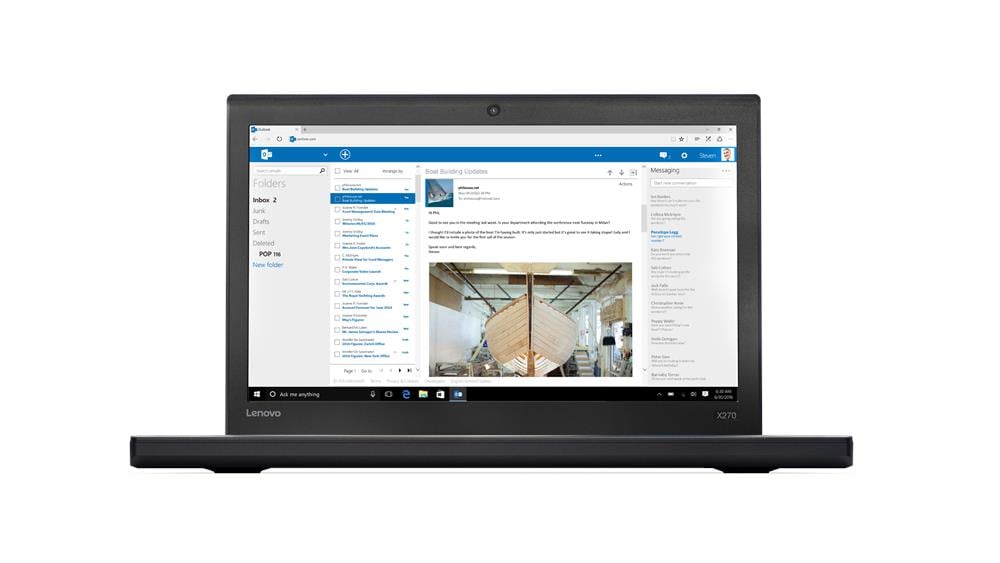

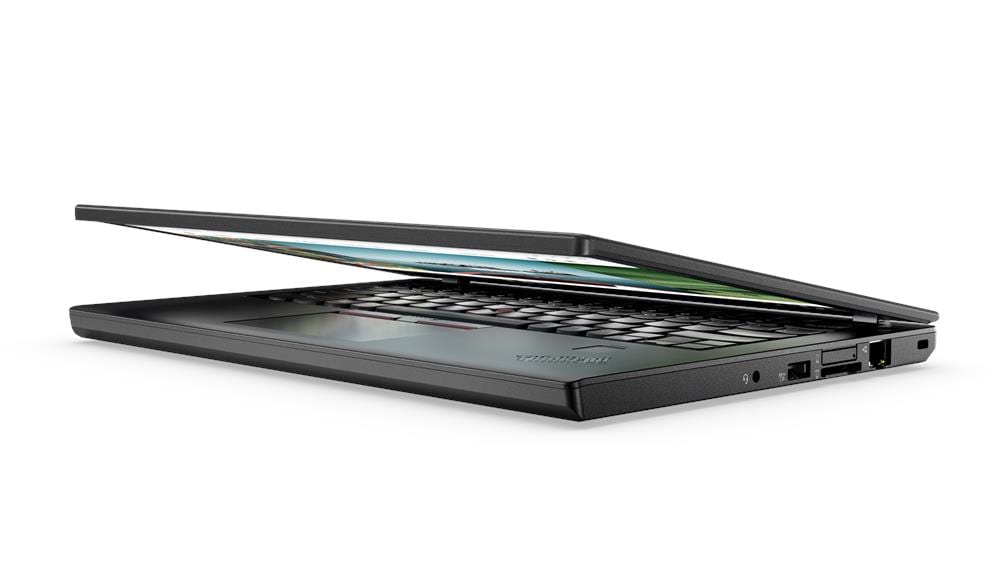

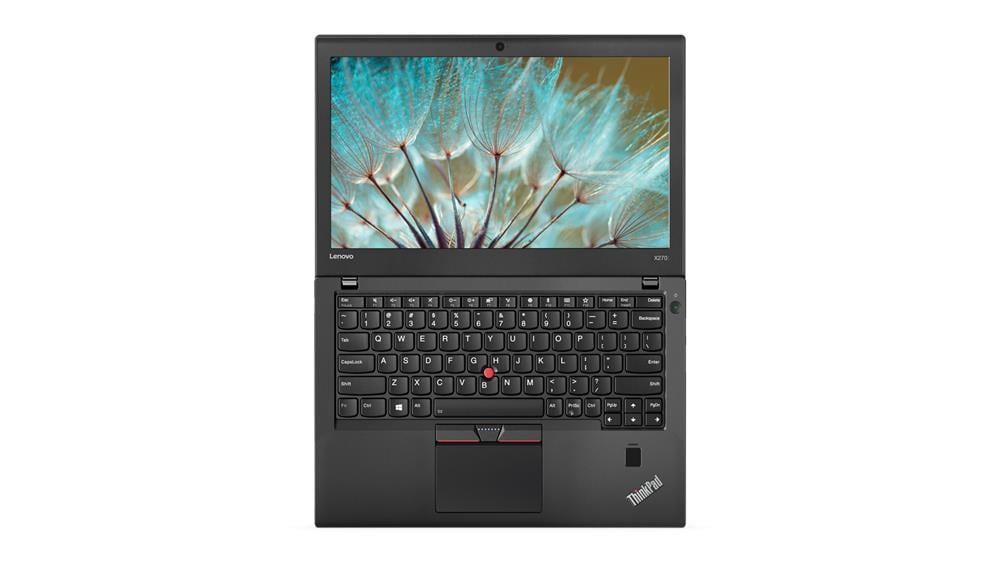

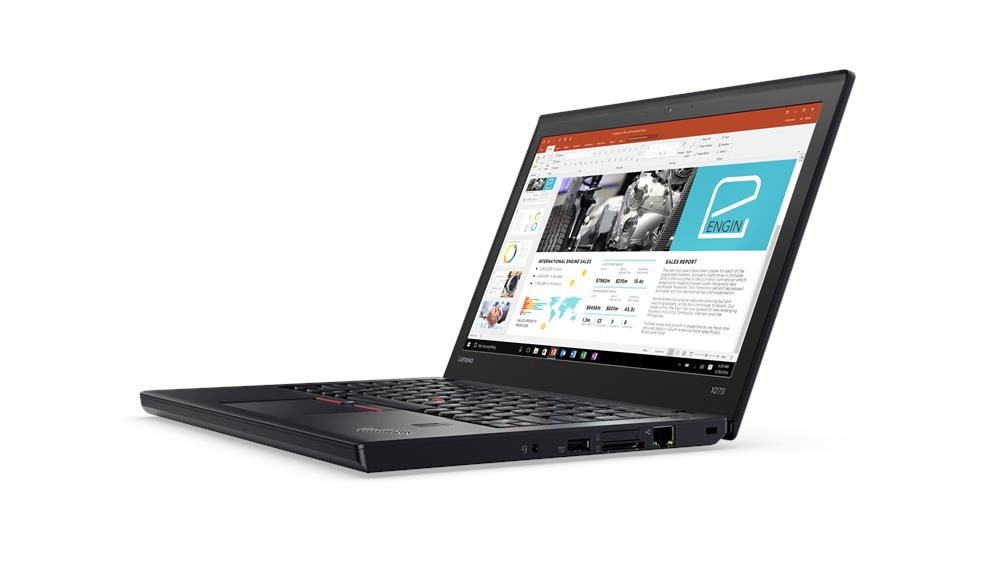

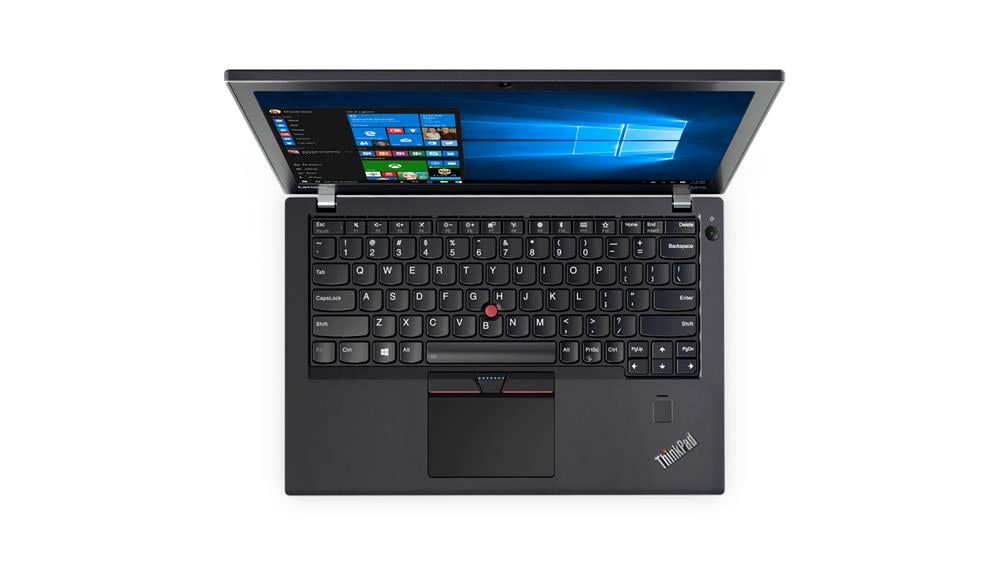

ThinkPad X270

The 12.5" travel companion — dual hot-swap batteries, MIL-SPEC toughness and a 1.32 kg frame that outlasts any work trip.

Screen

12.5" FHD IPS 300 nits

Processor

Intel Core i5-6200U / i5-7300U / i7-7600U

Memory

8 – 16 GB DDR4-2133

Storage

256 GB – 512 GB NVMe SSD

Battery

Dual hot-swap (23 Wh + 23 Wh)

Weight

1.32 kg

Overview

Announced	January 2017
Form Factor	12.5" ultraportable, clamshell
Weight	1.32 kg (2.91 lb) starting
Dimensions	305.5 × 208.5 × 20.3 mm
Case Material	GFRP (glass fiber reinforced plastic)
Color	Black

Processor	Intel Core i5-6200U (Skylake) / i5-7300U / i7-7600U (Kaby Lake), 2C/4T
Graphics	Integrated Intel HD Graphics 520 / 620
Memory	1× SO-DIMM DDR4-2133, 8 / 16 GB
Storage	M.2 2280 PCIe NVMe SSD or 2.5" SATA, up to 512 GB
System Management	Intel vPro (optional)

WLAN + Bluetooth	Intel 8260/8265 802.11ac 2×2 + Bluetooth 4.1
WWAN	Optional 4G LTE (Sierra EM7455)
Ports	USB-C (DisplayPort/PD), 2× USB 3.0, HDMI 1.4b, RJ45 Gigabit Ethernet, SD card, headphone/mic, optional smart card reader
Docking	OneLink+ / ThinkPad Ultra Dock support

Battery	Dual hot-swap: integrated 23 Wh + swappable 23 Wh (or 72 Wh external)
Power Adapter	45 W slim tip
Battery Life	Up to 20.5 hours (with 72 Wh, MobileMark 2014)

Security Chip	Discrete TPM 2.0
Fingerprint Reader	Touch style, match-on-chip
Other Security	Optional smart card reader, Kensington lock slot
Operating System	Windows 10 Pro 64
Warranty	Refurbished with 12-month warranty
